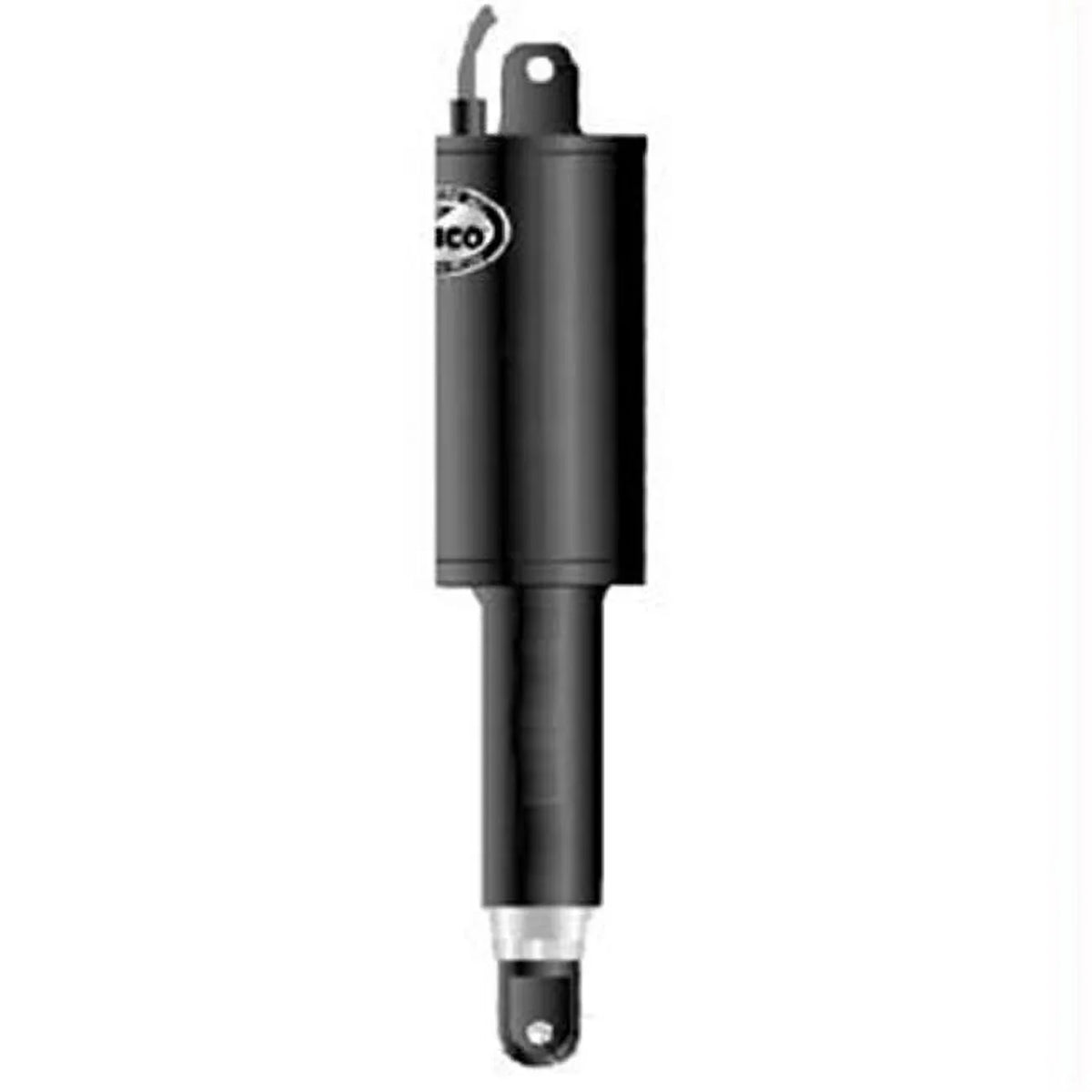

LENCO PARTS 15054-001 LENCO 12V 2 1-4 Inch STROKE ACTUATOR with 6 Foot WIRE

101 Standard Actuator. Included in Standard Trim Tab Kit Standard Performance Tab Kit SeaDoo Kit and Bennett Retrofit Kit. 5/16" (.79 cm) mounting hardware. Stroke: 2-1/4" (5.72 cm). Length overall: 12-1/8" (30.80 cm). Length pin to pin: 11-1/2" (29.21 cm). Diameter (upper housing): 2-1/2" (6.35 cm). Mounting hardware: 5/16" (.79 cm) or Delrin Pin. Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing. Corrosion proof Vandar mounts. Stainless steel ram wont flex even under extreme loads. Double O-ring for maximum protection. Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so theres no need for complicated limit switches and clutches. Self-locking ballscrew locks into position and will not drift. Precision molded powdered metal high alloy gears provide high accuracy high wear resistance and high strength for long life. Tough high-torque motor easily transfers 750 lbs. High-impact ultraviolet resistant nylon 66 50% glass fiber reinforced thermoplastic housing. Corrosion proof Vandar cap and mount stands up to severe loads.- SKU: CW29122
